L7 Heavy Duty Retaining Wall Block (RWB)

Features and advantages of the L7 retaining wall block

L7 RWB

  1. The L7 RWB has the ideal weight to size ratio and is designed to build strong heavy duty and high retaining walls.
  2. The overall dimensions of the L7 are: 380mm wide x 400mm deep x 220mm high, 10mm high front lip. When laid with a 225mm gap one needs 7 blocks/m2 and when laid without a gap 12 blocks/m2.
  3. For optimum tensile and compressional strength the block has an increased wall thickness of 55mm, tapered to 60mm. At high tensile areas the wall thickness of the block is increased to 70mm/75mm.
  4. The 400mm block depth provides important weight at the back of the wall where it is most needed for wall weight and stability. Most of these types with open face block layouts, lack that depth penetration  into the embankment.
  5. The L7 weighs 38Kg without the slider. The slider weighs 6.6Kg. The length of the slider is 225mm, which also determines the max. gap between the blocks when laid in an open layout without a slider.
  6. When the L7 is laid without a gap and direct next to each other in a straight line or in curves, the L7 has a unique positive interlocking feature between each block, guaranteeing intimate contact and perfect front face alignment between the blocks at all times. This design registered interlocking feature will also increase the stability of each row laid and at the same time also strengthen the whole retaining wall. The positive interlocking between each block is achieved through female and male nibs placed vertically on the side of each block.

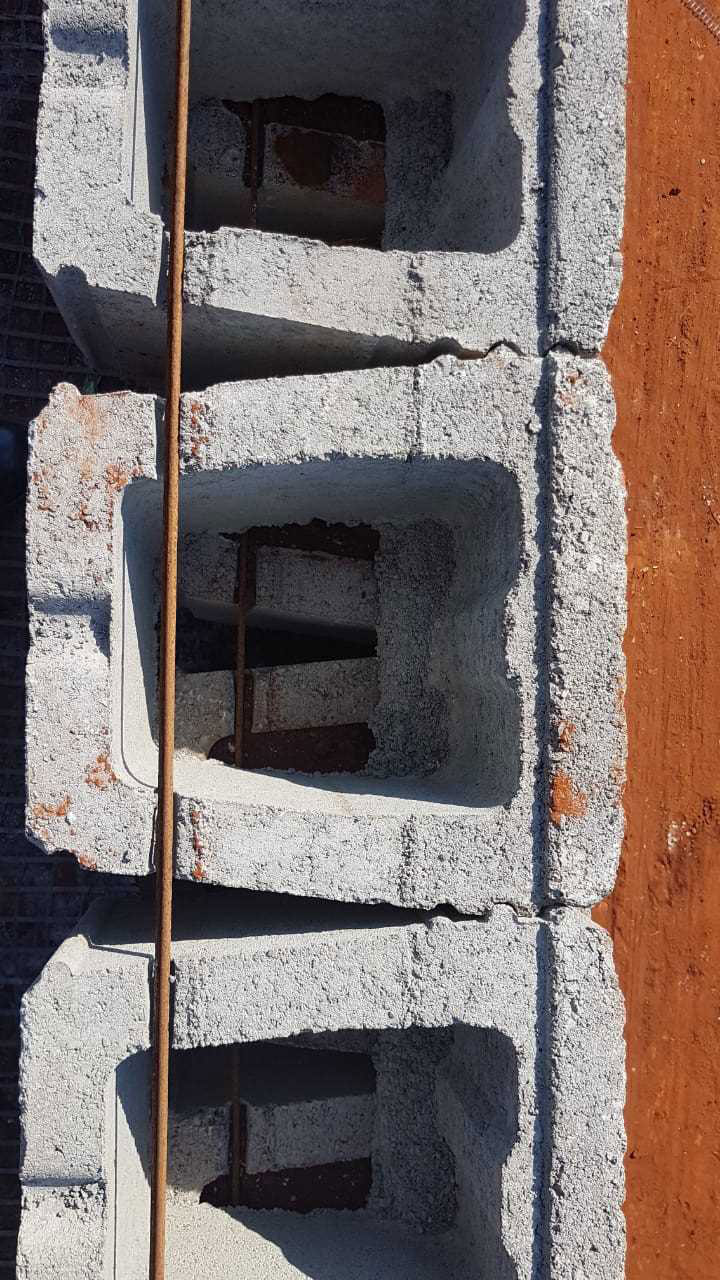

  7. To further increase wall stability the L7 is making use of the unique and revolutionary new GreenLock anchorage system. Two grooves run parallel to the front face of the block and are placed near the back of the block top surface. This groove arrangement enables one to place a inexpensive 6 to 12mm round steel bar, Y6 up to Y12 reinforcing rod or such, into the groove to anchor each block to each other and in addition each block row can be secured into the embankment by simply using a polyurethane, or 8 gauge galvanised wire, at predetermined intervals tied around the steel bar and at the other end around an anchor/pipe driven into the soil/embankment, or wrapped around a L7 block filled with a weak cement mix, at any allowable distance, either into virgin soil, soilcrete or into the compacted backfill.
  8. Whether the L7 block is laid with or without a gap, each row of blocks is interlocked and anchored to each other through the steel round bar, Y-reinforcing rod or such. This type of anchorage is very effective, inexpensive and simple to use. The design has been registered and is unique to the GreenLock retaining wall blocks.
  9. Convex curves in retaining walls are usually weaker then concave curves. To be able to anchor the convex curved wall as well with a steel rod an indent has been placed at the back of the block centre on the top surface. This groove allows the polyurethane rope, or the 8 gauge galvanised wire tied around the round bar or a Y-6 reinforcing bar, to pass through the block surfaces, because the gap provided for by the angled sides when the blocks are laid in a straight line, is now closed when the blocks are laid in a convex curve.
  10. The L7 has a 52.5mm wide x 10mm high front lip allowing a wall angle of approx. 76 degrees. When the blocks are laid with a slider the wall angle can be changed to either 68 degrees or 58 degrees. This is achieved because the slider has also a 10mm high lip in line with the block lip. The next blockrow laid on top of the slider can than rest against the lip of the slider. When the slider is placed back by one Vertical groove/nib (the 4 vertical female and the 3 vertical male nibs at the side of the block) the wall angle is approx. 68 degrees and and when placed back by one more groove/nib, the wall angle is 58 degrees.
  11. The infill volume of the block is 0.016 m3. Please note that the L7 has on purpose no centre rib wall. The main reason is that the soil cavities of blocks with centre rib walls have smaller infill volumes and heat up the soil more through the sun and therefore hinder proper plant growth. In addition the weight of a three rib block is increased unnecessary. The increased wall thickness of the L7 block allow easier material fill during the manufacturing process, resulting therefore in a far better compaction rate, and increased Mpa strength of the blocks.
  12. The L7 has a well defined floor at the front to prevent soil wash out when the blocks are laid with a gap and without a slider.
  13. For a perfect and accurate convex curved wall, the blocks are tapered and maintain at all times intimate positive interlocking through the male and female vertical nibs placed vertically on the side of the blocks.
  14. For smaller wall curves less than the curve provided for by the angled sides, the blocks can “hinge” either around the single female and the single male nib positioned vertically right at the back of the block for convex curves, and for concave curves “hinge” around the first front female and male nib at the front of the block. That way the blocks are always aligned perfectly.
  15. The L7 can circumvent trees, manholes or other obstacles by simply using the vertical interlocking grooves/nibs to set back or set forward each block by either 40mm or 80mm (pitch of the male and female nibs is 40mm). The face of the blocks are thus always facing parallel to the wall face and provide a stronger, and perfect formed wall indent or protrusion.
  16. To set out a perfect convex curve when the blocks are laid with a gap, with or without a slider, one can place in the first “set out” row of blocks laid, a slider in the front and one at the back of the blocks as a spacer. That way the curve is perfectly formed and laid out. All consecutive block rows are simple laid against the block lip with either a slider placed at the front of the block or without a slider.
  17. Setting out the first block row when the blocks are laid with a gap and where a slider is not required, use a slider as a distance piece to form an exact gap length between each block.
  18. There are 3 vertical inverted grooves placed on the front face of the block. The centre groove is a marker to lay each consecutive row of blocks exactly over the block joints of the block row underneath when the blocks are laid without a gap, or directly over the middle of the slider when the blocks are installed with a slider. For this purpose the slider also has a protruding vertical marker in the centre. The 2 outer grooves have a pitch of 225mm which is also the max. gap the blocks can be laid with an open face either with or without a slider. The length of the slider is also 225mm. Each block row above the block row laid underneath is than placed exactly in the centre over the 225mm gap. The 3 vertical marker grooves are there to help the installers to form an evenly distributed and fluted wall face resulting in a beautiful and balanced looking wall.
  19. For extreme high and stable walls the L7 can be laid in double or multiple rows of blocks to increase the wall weight as well as to prevent over movement in extreme conditions. If required the blocks can easily be vertically reinforced and filled with concrete.
  20. The L7 has been designed and engineered to be stacked and transported without pallets using a grab truck. Thus the stacks can be easily stored, counted, shrink wrapped or strapped, resulting in quick loading and off loading without pallets left behind. Building sites are kept tidy and free of unsightly collapsing stacks and unnecessary breakages. Trucks can offload and move off site quickly without hindering building activity.
  21. The finished GreenLock L7 installed retaining wall, laid with or without a gap, with or without a slider, are stable, strong, durable structures and aesthetically pleasing to the eye.
  22. We at GreenLock always advise to use the services of a qualified civil engineer to design any retaining wall higher than 1.2m. That way you are sure the wall will last forever and importantly, falls within the required Municipal guide lines and regulations. A proper engineer designed retaining wall will further help to prevent any future possible wall failures due to wrong installation.
